Load Detection
Side mounted LED graph displays current drill status before, during and after the drilling operation. The load monitoring LEDs also offer advanced notice of worn or damaged cutters.
Auto-return Function
Once drilling is completed and the slug is ejected from the hole, the cutting bit is quickly retracted.
This quick drill motor retraction allows the user to move on to the next hole more quickly.

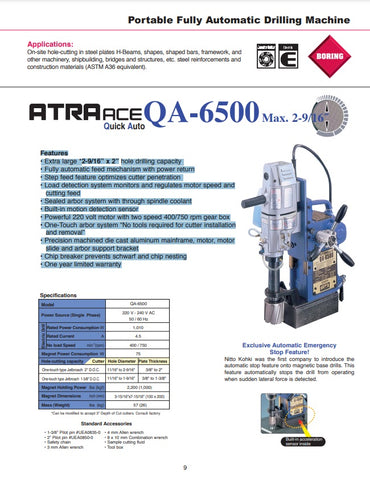

Features
• Extra large *2-9/16” x 2” hole drilling capacity
• Fully automatic feed mechanism with power return
• Step feed feature optimizes cutter penetration
• Load detection system monitors and regulates motor speed and
cutting feed
• Sealed arbor system with through spindle coolant
• Built-in motion detection sensor
• Powerful 220 volt motor with two speed 400/750 rpm gear box
• One-Touch arbor system “No tools required for cutter installation
and removal”
• Precision machined die cast aluminum mainframe, motor, motor
slide and arbor support bracket
• Chip breaker prevents schwarf and chip nesting
• One year limited warranty
